The Dawn of 100G Networking
01.09.2023
Wireless Netware Technology Ltd.

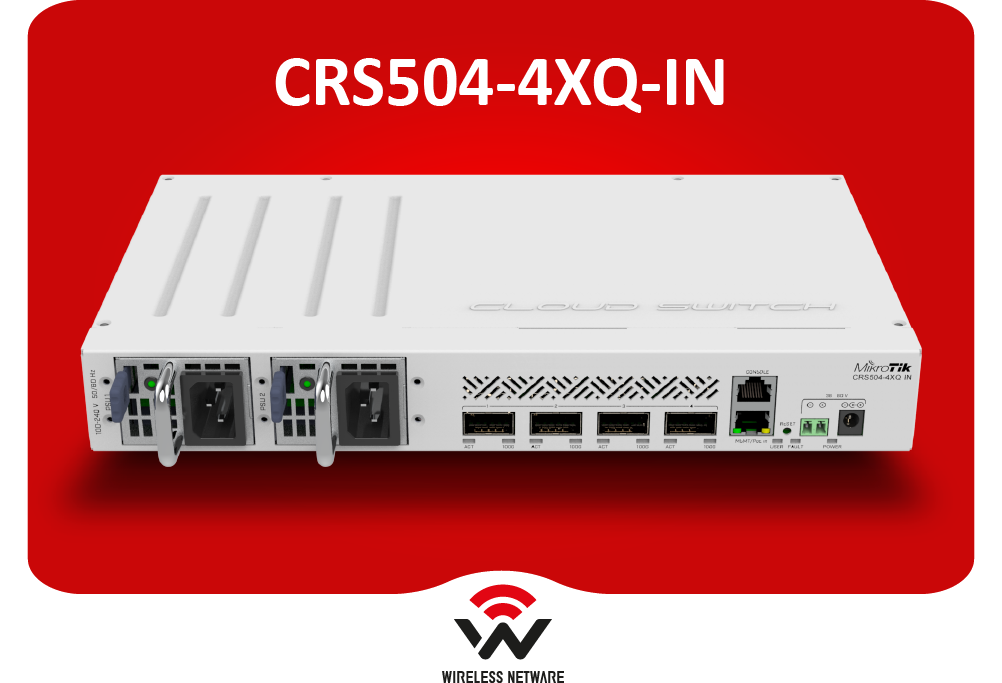

A Glimpse into the CRS504-4XQ-IN
In today's fast-paced digital world, the demand for higher bandwidth and faster transmission speeds is ever-increasing. As enterprises and data centers shift towards 100G Ethernet data transmission, MikroTik stands at the forefront with its latest offering: the CRS504-4XQ-IN Switch.
The CRS504-4XQ-IN is not just another switch in the market. It's your compact, energy-efficient gateway to the world of 100 Gigabit networking. Designed as the next logical step for those looking to upgrade from 10 or 40 Gigabit networks, this switch boasts multiple powering options and dual hot-swap power supplies.
Technical Specifications Breakdown
Marvel 98DX4310 ASIC
Out-of-band Management
DUAL HOT-SWAP POWER SUPPLIES
100G, 40G, 25G, 10G, CONNECTIVITY
The CRS504-4XQ-IN exemplifies MikroTik's innovative approach to networking. At its heart lies the QCA9531 CPU, clocked at 650 MHz, dedicated exclusively for management tasks, ensuring seamless operations. This is complemented by a 64 MB RAM.
The device employs the efficient 98DX4310 ASIC, and its compact dimensions of 320 x 185 x 44 mm make it both space-efficient and robust. With a RouterOS license of level 5, its durability is underscored by an MTBF of approximately 200,000 hours.
Powering options are diverse, with two AC inputs and three DC inputs, offering both redundancy and adaptability. Its standout feature is the four 100G QSFP28 ports, designed for rapid data transfers.
The switch is proficient in L3 hardware offloading, capable of handling 60K - 120K IPv4 routes, 64k IPv4 hosts, 15k-20k IPv6 routes, 32k IPv6 hosts, 8k next hops, 4.5k fasttrack connections, and 4k NAT entries. An integrated Ethernet port ensures ease of management. Given its comprehensive feature set and competitive price point, the CRS504-4XQ-IN is a compelling option for those seeking advanced networking solutions.
Why the Shift to 100G?
The migration to 100Gbps networks in bussineses and data centers is more than just a trend. Statistics indicates a 20% year-over-year increase network traffic load.
Decreasing Cost: As technology matures, the costs associated with it decrease, making high-end networking equipment more accessible to a broader audience.
Enhanced Data Transfer Rates: 100Gb networking offers unparalleled data transfer speeds, ensuring swift communication and data exchange.
Modularity with Multiple Channels: The 100Gb connection can be segmented into four distinct 25Gb channels, or even 10Gb or 1Gb channels. This adaptability in network design ensures tailored bandwidth utilization to meet specific requirements, enhancing overall network efficiency.
Reduced Latency: Faster speeds mean reduced data transmission delays, which is crucial for applications like real-time analytics, financial transactions, and gaming.
Support for Advanced Applications: 100Gb networking supports the demands of advanced applications like AI, machine learning, and 4K video streaming and etc.
Future-Proofing: As data demands continue to grow, adopting 100Gb now prepares businesses for future data-intensive applications and workloads.

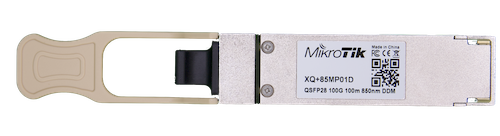

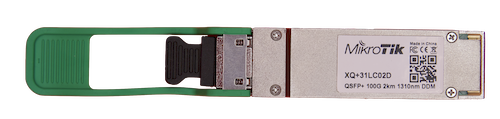

The Role of 100G QSFP28 Transceivers
As the demand for 100G Ethernet grows, so does the need for efficient transceivers. The 100G QSFP28 transceivers play a pivotal role in boosting 100G transmission

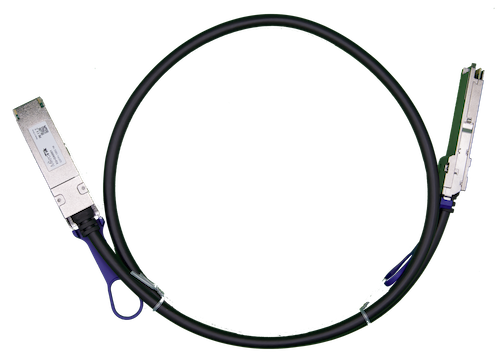

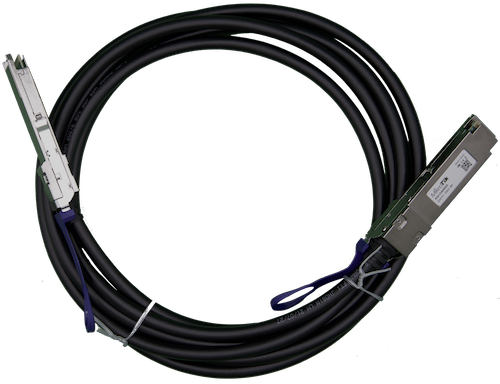

DACs provide a direct connection between devices, eliminating the need for transceivers and reducing overall costs. These cables offer ultra-low latency, ensuring rapid data transfer and optimal network performance.
The Impact of 100G Networking Across Various Domains
Data Centers: The CRS504-4XQ-IN's high-speed connectivity is a boon for data centers. Efficient data transfer and low-latency communication between servers are crucial, and this switch delivers on both fronts.
Internet Service Providers (ISPs): For ISPs aiming to offer faster and more reliable connections to their customers, the high port density and throughput capabilities of the CRS504-4XQ-IN are unmatched.
Enterprises: Whether it's large file transfers or real-time applications, businesses with demanding network requirements will find the advanced features of the CRS504-4XQ-IN, including VLANs, ACL, MLAG, and L3 hardware offloading, invaluable.
Research and Education: The CRS504-4XQ-IN is not just for businesses. Universities, research institutions, and other educational organizations can leverage its high-performance networking capabilities for their demanding projects.
Cloud Service Providers: In the cloud domain, network infrastructure and operational costs go hand in hand. The CRS504-4XQ-IN, with its high throughput and low power consumption, offers an optimal balance.
Managing the Upgrade Process
Transitioning to a 100G network is a strategic move to accommodate the growing digital demands of contemporary applications and services. As the data landscape evolves, networks must be equipped to handle increased traffic, real-time processing, and the intricacies of modern data-intensive applications. At Wireless Netware, we understand the technical nuances of such a transition. Our team, comprised of seasoned engineers, offers expertise in design, planning, and implementation of 100G networks. We provide guidance on hardware compatibility, configuration optimizations, and potential challenges that might arise during the upgrade. Our goal is to ensure that the shift to 100G is not just an upgrade, but a well-orchestrated enhancement of your network infrastructure.
In Conclusion
The 100Gbps data rate era is here, and it's here to stay. As organizations globally recognize the benefits of faster data transmission speeds, products like the MikroTik CRS504-4XQ-IN Switch will become staples in enterprise networks and data centers. As with all technological shifts, it's crucial to plan meticulously, ensuring that every component of the network is ready for the future.
Availability
At Wireless Netware, we pride ourselves on being one of the leading MikroTik distributors in North America. Our commitment goes beyond just offering products; we provide unwavering support to our clients, ensuring they harness the full potential of their network solutions. We're thrilled to announce that the CRS504-4XQ-IN switch, renowned for its exceptional performance and cutting-edge features, is now available in our collection. Furthermore, our team of experts is on standby to craft custom-tailored solutions, ensuring that you get a network setup that's perfectly aligned with your unique requirements. Dive into the future of efficient networking with us.
